Safety beams are a critical part of any automatic sliding door, serving as the primary line of defense against accidental door closure, collisions, and operational hazards. In modern commercial and public environments—such as retail centers, medical facilities, transportation hubs, and corporate buildings—automatic sliding door safety depends largely on how well the sensors are selected, positioned, installed, synchronized, and maintained. Yet many installation failures, operational issues, and safety breaches occur because the safety beams were not configured correctly.
This extended guide explores every essential step and consideration involved in setting up safety beams for sliding door systems. Written for installers, building managers, architects, contractors, and automation specialists, it combines technical depth with practical instructions. You will learn why safety beams are vital, how they work, placement strategies, installation guidelines, wiring integration, calibration, testing, compliance requirements, common troubleshooting methods, and long-term maintenance practices.
Whether you are upgrading an older system or installing a new automatic sliding door, these insights will help you create a safe, responsive, and fully compliant entrance system.
Why Safety Beams Are Essential for Automatic Sliding Door Systems
An automatic sliding door operates by sensing user presence or motion, opening and closing automatically. However, without safety beams, the door cannot accurately detect when a person or object is still within the sliding path. This can lead to dangerous impacts, costly equipment damage, and liability issues. Safety beams prevent accidents by creating an invisible detection zone across the opening.
Key Reasons Safety Beams Are Non-Negotiable
1. Preventing Physical Injury
Safety beams detect any interruption—such as a child, elderly person, wheelchair user, or stroller passing through—and stop the door from closing. They dramatically reduce the risk of impact injuries that automatic doors can cause if they close too soon.
2. Protecting Equipment and Property
Trolleys, luggage, carts, and mobility devices can be damaged if struck by a sliding door. Safety beams prevent those collisions by keeping the doorway open if the path remains occupied.
3. Reducing Motor and Gear Wear
Every time an automatic sliding door has to stop or reverse suddenly, the motor and gear train experience stress. Well-calibrated safety beams prevent unnecessary mechanical strain, extending system lifespan.

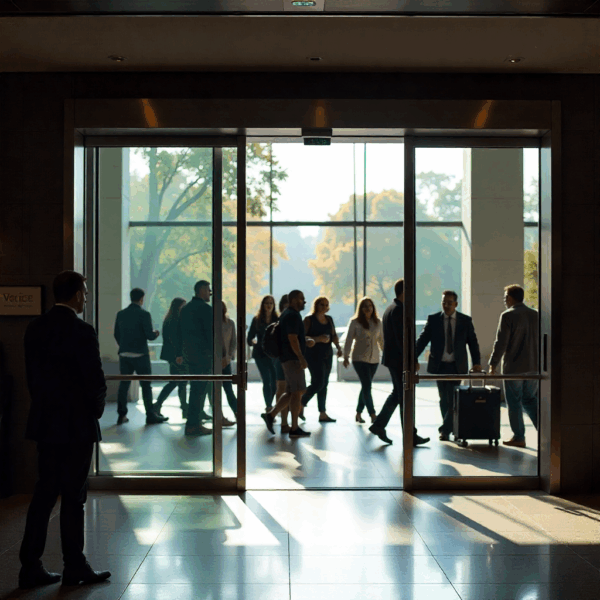

4. Ensuring Compliance with Building and Safety Codes
Commercial building standards typically require automated entrances to include safety devices. Workplace safety expectations, such as those referenced by Safe Work Australia, recommend protective devices for powered entry systems.
Installing safety beams helps ensure compliance with these guidelines.
5. Enhancing Accessibility for All Users
Safety beams keep the entrance open long enough for slow-moving individuals, wheelchair users, and people with mobility impairments to pass through comfortably and safely.
How Safety Beams Work in Sliding Door Systems
Safety beams operate using infrared technology, although the complexity of the detection can vary depending on the type of sensor. In most automatic sliding door systems, beams function using a transmitter and receiver pair.
Infrared Transmission Basics
-
The transmitter (TX) emits an infrared beam.
-
The receiver (RX) waits to detect that beam.
-
When the beam is broken, the receiver triggers a signal to the controller.
-
The controller instructs the automatic sliding door to stop closing, reverse, or remain open.
This simple principle forms a sophisticated safety mechanism when integrated with modern door automation.
Controller Integration
The door controller processes the sensor signal to determine how the door should react. Depending on the configuration:
-
If the door is closing and the beam breaks, the system immediately reopens.
-
If the door is open and the beam breaks, the system resets its hold-open timer.
-
If the door is opening and a beam breaks, the system maintains operation uninterrupted.
Types of Safety Beams Used in Sliding Door Systems
Choosing the right sensor ensures optimal performance. The environment, architecture, traffic density, and door size all influence the ideal choice.
Infrared Through-Beam Sensor
This is the most common type used in automatic sliding doors. It includes a TX and RX placed directly opposite each other.
Advantages:
-
Highly reliable
-
Works in bright or outdoor environments
-
Strong detection distance
Best for:
-
Retail storefronts
-
High-traffic commercial doors
-
Wide entrances
-
Outdoor or semi-outdoor entrances
Reflective Photocell Sensor
This type uses a transmitter and a reflector panel instead of a separate receiver. The transmitter sends a beam to the reflector, which sends it back.
Advantages:
-
Easy installation
-
Fewer wiring requirements
Best for:
-
Narrow entrances
-
Sites with limited cable access
Laser Curtain or Multi-Spot Sensors
These advanced sensors use multiple detection points. They create a vertical or horizontal “curtain” of infrared beams across the doorway.
Advantages:
-
Maximum safety
-
Detect fine objects (pets, wheels, children’s hands)
-
Covers large areas
Best for:
-
Hospitals
-
Airports
-
Aged care facilities
-
High-speed doors
-
Sites with strict safety requirements
The chosen sensor must match the sensitivity and logic of the controller used in your automatic sliding door system.
Correct Placement of Safety Beams for Maximum Protection
Positioning safety beams correctly is more important than any other step. Incorrect height or angle leads to false activations, blind zones, and dangerous gaps in detection.
Primary Detection Zone: Standard Lower Beam
-
Small children
-
Wheelchairs
-
Mobility scooters
-
Trolleys
-
Pets
-
Strollers
If the beam is placed too high, wheels or small children may pass undetected.
Secondary Detection Zone: Upper Beam (Optional but Recommended)
In moderate- to high-traffic buildings, an upper safety beam adds an additional safety layer. Typical height: 900 mm to 1200 mm above floor level.
This upper beam improves detection of:
-
Adults walking quickly
-
Shoulder-height movement
-
Individuals carrying bags or boxes
-
Upper-body positioning near the sliding path
Side-Mounted or Door-Frame Sensors
Some sliding door systems include sensors on the door frame to detect lateral movement or the proximity of people near the sliding panel.
These sensors prevent people from unintentionally making contact with the moving glass.
Multi-Spot and Laser Curtains
Advanced installations use vertical curtain sensors that span the entire doorway height. These provide unmatched safety coverage and should be installed in areas requiring rigorous compliance, such as hospitals and airports.
Correct placement ensures safety beams work consistently and do not leave blind spots where the automatic sliding door might close unexpectedly.

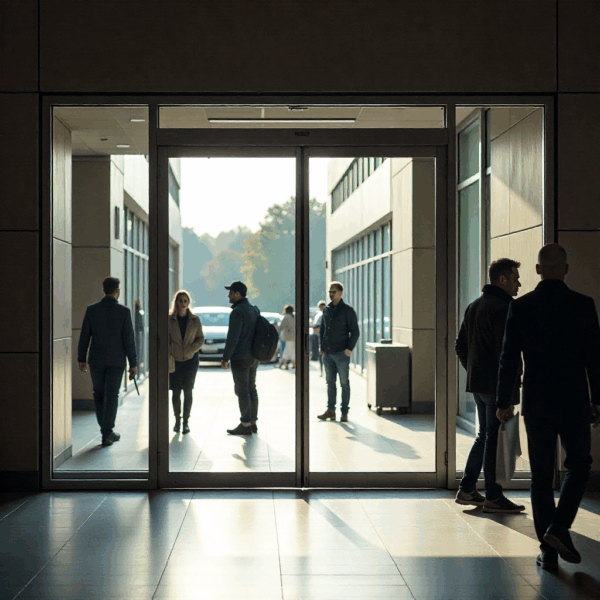

Detailed Step-by-Step Installation Guide for Safety Beams
Below is an expanded, deeply detailed procedure suitable for professional installers.
Step 1: Prepare Tools, Hardware, and System Components
Before beginning installation, gather all necessary equipment, including:
-
Infrared sensors (TX + RX or reflective type)
-
Mounting brackets and screws
-
Drill and drill bits
-
Measuring tape
-
Level tool
-
Conduit for cable protection
-
Electrical cable (12–24 V compatible)
-
Silicone sealant for weatherproofing
-
Screwdrivers
-
Cleaning cloth
Organizing tools beforehand ensures a smooth workflow and prevents misalignment from rushing.
Step 2: Identify the Optimal Sensor Mounting Height
Choose the correct mounting height based on building usage.
Measure and mark the mounting points precisely.
Use a level tool to ensure both sides are perfectly aligned. Even a slight misalignment can cause:
-
Beam interruptions
-
False triggers
-
Controller errors
-
Slow or non-responsive door behavior
Precise alignment determines the overall reliability of your sliding door systems.
Step 3: Mount the Infrared Transmitter (TX)
Attach the transmitter firmly to the door frame or wall.
Ensure it faces the receiver directly and is positioned at the marked location.
Key considerations:
-
Mount firmly to prevent vibration misalignment
-
Avoid placement behind dark or tinted glass panels
-
Keep away from reflective surfaces that could scatter the infrared beam
-
Do not over-tighten bracket screws, which may warp the sensor housing
Step 4: Mount the Receiver (RX) or Reflector
Install the receiver exactly opposite the transmitter.
Proper alignment ensures a clear infrared path, which is crucial for sensor reliability.
For reflective sensors, mount the reflector securely on a flat, perpendicular surface.
Avoid mounting near metal surfaces that may distort the reflected beam.
Step 5: Connect afety Beam Wiring to the Door Controller
Depending on your system, connect the sensors to terminals labeled:
-
PHOTOCELL
-
SAFETY
-
BEAM
-
IR INPUT
-
SENSOR 1 / SENSOR 2
Typical wiring includes:
-
Power input for TX (12–24 V)
-
Power and signal for RX
-
Relay output to controller
Secure the wiring inside a protective conduit, especially in outdoor entrances.
Seal conduit entry points with silicone to protect against moisture.
Step 6: Align and Calibrate the Safety Beam
Activate the automatic sliding door controller.
Most sensors include LEDs indicating:
-
Steady light: strong alignment
-
Blinking light: weak signal
-
No light: misalignment or obstruction
Fine-tune alignment by gently adjusting the sensor angle.
Patience is essential during this step.
A perfectly aligned sensor reduces false triggers and ensures quick response.
Step 7: Configure Safety Beam Behavior in the Controller
Modern controllers allow customization of safety behavior, including:
-
Closing force
-
Reopening sensitivity
-
Delay time
-
Hold-open duration
-
Reversal speed
Recommended settings for safety:
-
Low closing pressure
-
Instant reversal on beam interruption
-
Adequate hold-open time in public access areas
-
Moderate closing speed for pedestrian safety
Controller settings define how the automatic sliding door behaves when safety beams are triggered.
Step 8: Perform Functional Testing Under Real Conditions
Testing is essential to verify that the safety beams and door system perform reliably.
Perform at least six different tests:
-
Walk slowly through the beam
-
Pass quickly through the doorway
-
Roll a trolley through
-
Place a mobility aid in the path
-
Block the lower beam only
-
Test with sunshine or bright lights nearby
The door must reverse or remain open instantly whenever the beam is interrupted.
If any test fails, recalibrate or reposition the sensors.
Integration of Safety Beams with Modern Sliding Door Systems
Automatic doors often integrate multiple sensor technologies for comprehensive protection:
1. Microwave Radar Sensors
These detect approaching movement from a distance.
2. Presence Detection Mats
Installed on the floor, these detect weight or presence.
3. Laser Curtain Sensors
Provide full-height detection coverage.
4. Automatic Locking Systems
Safety beams prevent locking when someone is in the doorway.
5. Energy-Efficiency Control Logic
Combined with safety beams, smart systems reduce energy loss by adjusting door open time.
For further reading on energy-saving strategies in automated doors:👉 https://digitalhomesystems.com.au/energy-savings-with-automatic-doors/
Safety beams are foundational to this ecosystem, ensuring the entire automation system behaves predictably and safely.
Common Issues and Troubleshooting Advice
Even high-quality sensors encounter issues if not installed or calibrated correctly. Understanding common problems helps you resolve them quickly.
Frequent Misalignment
Often caused by vibration or accidental bumping. Re-check alignment and tighten mounts.

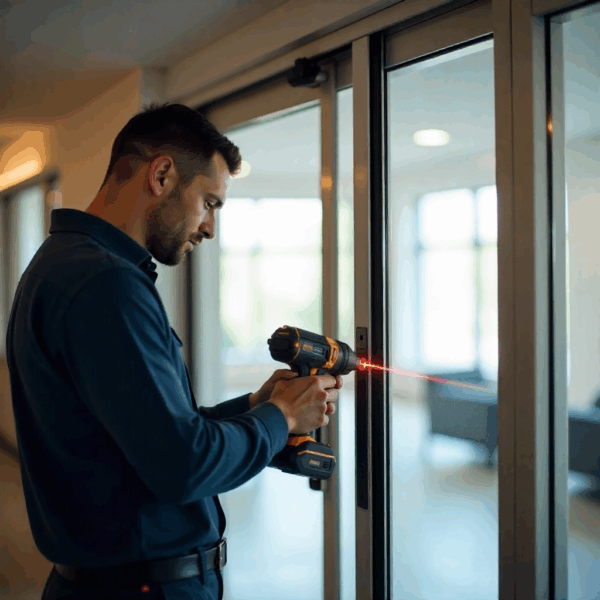

Dirty Lens or Obstructions
Dust, cobwebs, or debris can block the infrared beam. Clean lenses weekly in dusty environments.
Sunlight Interference
Bright sunlight may overwhelm the receiver. Angle sensors slightly downward or shield them.
Damaged Wiring
Rodents, weather, or aging may cause wiring faults. Inspect conduits and cables regularly.
False Triggers
Reflective floors, passing metallic objects, or advertising lights can interfere. Adjust sensitivity accordingly.
Maintenance Practices for Long-Term Safety and Performance
Routine maintenance greatly improves reliability.
Monthly Lens Cleaning
Use a soft microfiber cloth. Do not use abrasive cleaners.
Quarterly Alignment Checks
Temperature changes, building movement, or accidental knocks may shift sensors.
Annual Wiring Inspection
Look for moisture buildup, cracked insulation, or corrosion.
Routine Performance Tests
High-traffic buildings should test safety beams weekly.
System Firmware Updates
If your controller supports updates, keep it current for improved safety logic and reliability. These practices ensure your automatic sliding door continues running smoothly and safely for many years.
Conclusion
Setting up safety beams correctly is one of the most essential steps in installing or upgrading an automatic sliding door. These sensors protect people, equipment, and the door system itself while helping maintain compliance with building and safety standards. Proper installation requires precise positioning, correct wiring, accurate alignment, controller programming, and thorough testing.
When integrated properly into modern sliding door systems, safety beams enhance both safety and efficiency. They ensure smooth operation, protect against unforeseen hazards, and prolong the lifespan of the entire automation system.
