Description

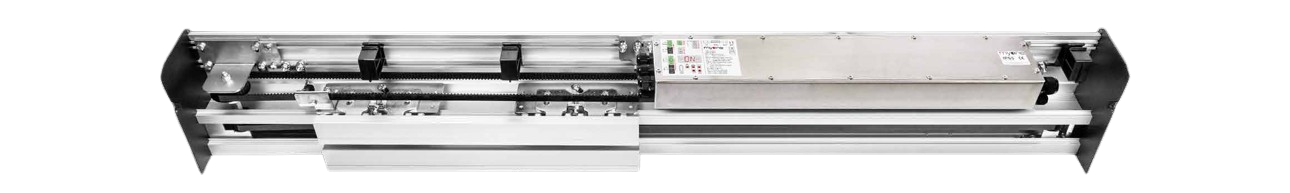

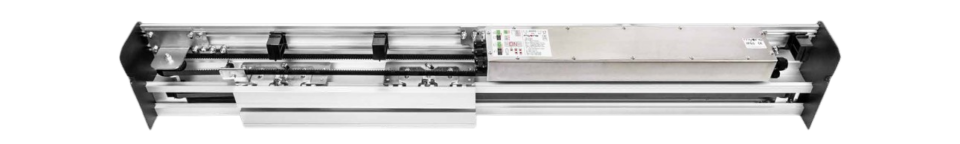

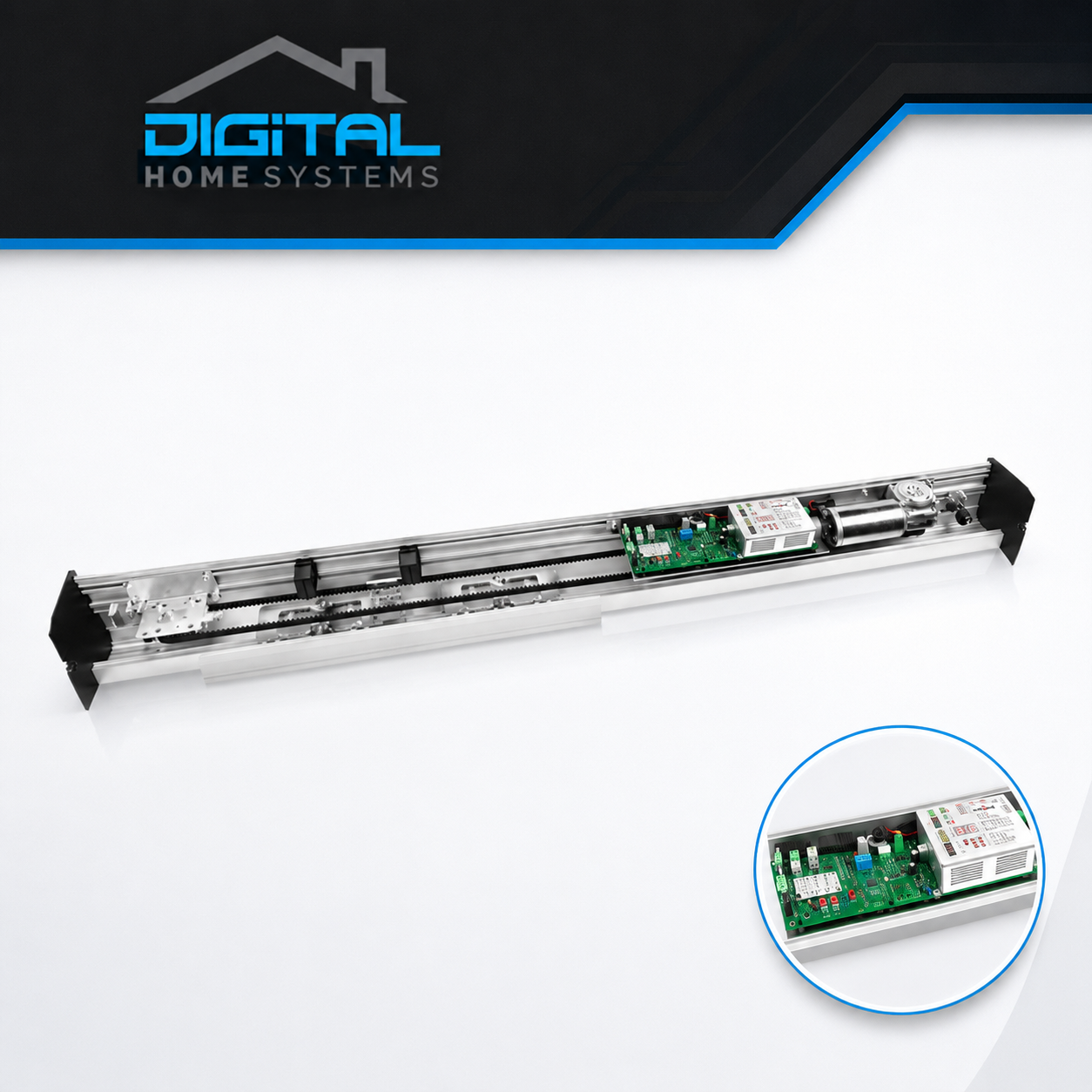

Automatic Sliding Door Kit ASL200
The ASL200 series automatic door system is an affordable, reliable & intelligent door system, perfect for a wide range of commercial applications. Capable of working with door leaves up to 200Kg.
This Sliding Door System is more than just compact solutions for areas where space is tight – they improve the user’s convenience and these solutions enhance the prestigious concepts of your favorite commercial or home use to automate door openings and closings, improving convenience, accessibility, or safety.
Features – ASL 200 Sliding Door System
The ASL-200 sliding door system is a cost-effective reliable sliding door system, with a wide range of compatible activation and safety features. This system is perfect for any commercial auto door application with combined door weights of under 200Kg.
Quality Components – ASL 200 Sliding Door System

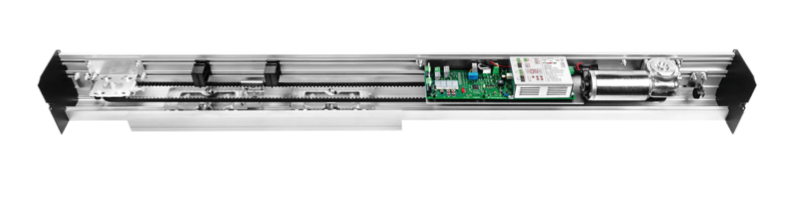

Highly efficient long life and high torque brushless DC motor alongside an intelligent microprocessor that automatically detects door weight and adjusts accordingly to ensure smooth door operation.
Intelligent safety
All ASL sliding doors come standard with a dedicated fire signal input as well as obstruction sensitivity. Combining these features with infrared presence sensors make this one of the safest doors on the market.
Full Glazing service
Our in-house fabrication & glazing team can provide everything from framed or frameless door leaves to full shopfronts
Technical Specifications
- Door operating speed : 20-50cm/s Adjustable
- Double Door leaf Weight : 200Kg
- Single Door leaf weight : 150kg
- Rated Power consumption : 65w
- Working Voltage : 240V 50 – 60 Hz
- Motor : 24v 100W (Brushless)
- Dimensions : 140mm x 162.5mm
Key Features
- Our door range uses cutting edge technology with a unique microprocessor system which can rapidly and accurately detect the door size and weight; and set the best operation parameters to make sure the door operates smoothly

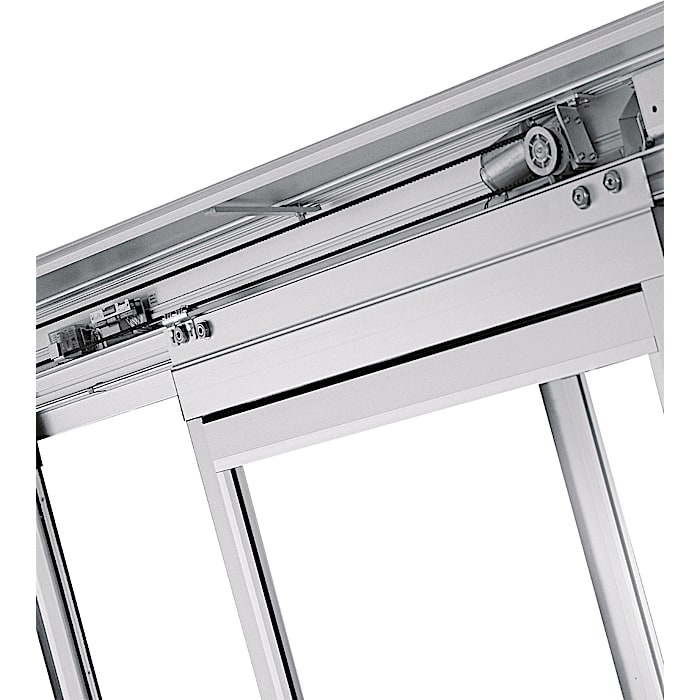

- Long life, high torque brushless DC motor drive system. The helical gear transmission ensures stable and reliable operation with continued use on heavy door leaves.
- Interlocking option which prevents doors in an airlock situation from opening until the other door has fully closed.
- Obstruction sensitivity – if when closing it meets an obstruction the doors will automatically re-open as per the AS 5007-2007. When the power is off, the doors are easily manually opened or closed.
- Includes provision for BMS and fire signal link
- Available in anodised aluminium or powder coated finishes.
- The system provides an aesthetically pleasing result that is reliable and quiet.We can use aluminium framed glass door leaves for window doors, alternative solid infill for privacy doors. Our system allows for multiple door leaves depending on the leaf size and does not compromise on design styles. The system is durable and robust and has been in use for over 6 years with multiple problem free installations
Download
Quick Overview
Product Details
MODEL 250 MODEL 250 INSTALLATION MANUAL
