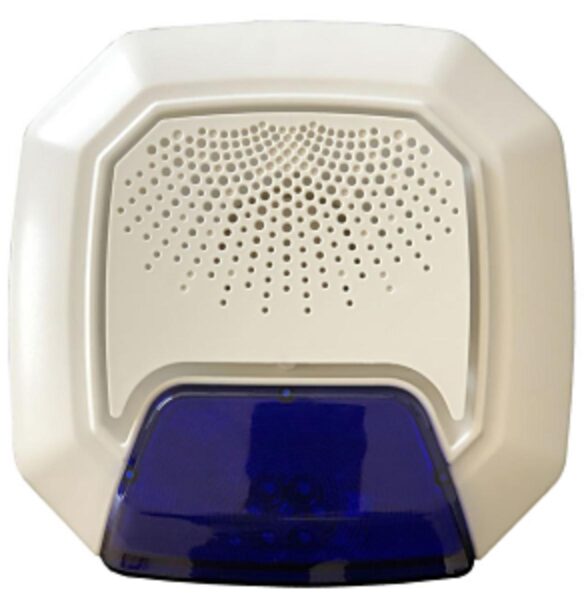

The VISION Z-Wave Outdoor Siren 115dB is a professional-grade device designed for high-demand environments where security solutions must meet strict performance and reliability standards. With a 115dB acoustic output and integrated flashing strobe, it provides both audible and visual alerts suitable for large commercial facilities, warehouses, and industrial sites.

Technical Specifications Relevant to Commercial Installations

The siren is engineered with a focus on industrial resilience. It delivers 115dB sound pressure at one meter, ensuring alarm signals penetrate noisy environments such as loading docks or factory floors. The integrated LED strobe enhances visibility during intrusion events, meeting dual-modality alerting requirements often outlined in commercial security specifications.

The operating voltage is low-consumption, optimized for Z-Wave networks, which minimizes maintenance cycles and reduces strain on backup power systems. Encased in a weather-resistant housing, the siren maintains performance in outdoor installations exposed to dust, rain, and extreme temperatures.

Z-Wave Network Integration

For installers, the integration benefits of the VISION Z-Wave Outdoor Siren 115dB are significant. The unit communicates via the Z-Wave Plus protocol, ensuring interoperability with a wide range of certified controllers and panels. This provides:

• Bi-directional communication: Status confirmation (armed, triggered, tamper alerts) can be monitored from the central controller.

• Network scalability: Additional sirens or security devices can be paired without re-engineering existing cabling.

• Low latency triggering: Optimized mesh routing ensures rapid activation in distributed industrial environments.

By deploying the siren as part of a larger Z-Wave mesh, installers can guarantee coverage across extensive facilities while reducing the need for traditional hardwired alarm infrastructure.

Installation Considerations for Industrial Sites

When specifying the VISION Z-Wave Outdoor Siren in commercial projects, installers should evaluate:

• Mounting position: Install at a minimum height of 2.5m to maximize sound propagation and strobe visibility while preventing tampering.

• Z-Wave node density: Ensure sufficient repeaters or controllers are present in large steel-frame buildings to maintain signal strength.

• Power redundancy: Pair the siren with battery backup to comply with AS/NZS 2201 requirements for alarm systems in commercial installations.

The compact form factor simplifies wall or fascia mounting, while tamper detection sensors immediately notify the controller if the unit is removed or opened.

Compliance and Safety Benefits

Industrial and commercial clients often require adherence to compliance standards for occupational safety and risk management. The VISION Z-Wave Outdoor Siren supports these needs with:

• Tamper protection: Alerts triggered on enclosure interference, reducing the risk of sabotage.

• High-decibel output: Meets common specifications for audible warning levels in industrial alarm systems.

• Visual alerting: Strobe activation provides redundancy for workers in high-noise zones.

By integrating this siren, installers can deliver systems aligned with Australian security compliance requirements and OH&S safety guidelines.

Applications in Commercial Security Projects

The siren is suited for deployment in:

• Perimeter protection – mounted at access gates, fences, or external doors for immediate deterrence.

• Industrial yards and warehouses – ensuring alarms are noticeable even in environments with machinery and high ambient noise.

• Multi-unit commercial complexes – scalable deployment across different sections without complex cabling.

Installers can integrate the VISION Z-Wave Outdoor Siren with intrusion panels, motion detectors, and access control systems, providing a layered security approach for industrial clients.

Installer Advantages

For professional installers, the siren represents a balance of ease of deployment and commercial-grade performance. The wireless Z-Wave architecture reduces time spent on cabling, while interoperability with existing controllers simplifies commissioning. Reduced maintenance demands and proven reliability increase client satisfaction and reduce call-back risks.

By specifying the VISION Z-Wave Outdoor Siren 115dB in commercial projects, installers deliver a robust, scalable, and standards-compliant solution tailored to industrial environments.

Installation Checklist – VISION Z-Wave Outdoor Siren 115dB

This guide is designed for professional installers deploying the VISION Z-Wave Outdoor Siren 115dB  in commercial or industrial environments.

---

1. Pre-Installation Preparation

• ✅ Confirm compatibility with the site’s Z-Wave controller or panel (must support Z-Wave Plus).

• ✅ Check NMI/network requirements if integrating with existing automation systems.

• ✅ Verify compliance requirements (e.g., AS/NZS 2201 for alarm installations).

• ✅ Assess signal coverage – confirm Z-Wave mesh nodes are sufficient for industrial buildings (add repeaters if needed).

• ✅ Select mounting location:

  • Minimum 2.5m above ground.

  • Visible from key access points.

  • Out of easy reach to reduce tampering.

  • Clear line-of-sight for strobe visibility.

---

2. Tools & Equipment

• ✅ Drill with appropriate masonry/metal bits.

• ✅ Wall plugs and weather-resistant mounting screws.

• ✅ Insulation tape and cable ties (if auxiliary wiring is used).

• ✅ Safety gear: gloves, goggles, and ladder compliant with worksite OH&S.

• ✅ Z-Wave controller or commissioning tool for pairing.

---

3. Mounting the Siren

• ✅ Mark and drill mounting holes using the supplied template.

• ✅ Secure backplate firmly to wall or fascia.

• ✅ Ensure unit is mounted level for strobe visibility.

• ✅ Insert tamper detection spring (if required) before fixing enclosure.

• ✅ Check enclosure seal is correctly seated to maintain weather resistance.

---

4. Power & Pairing

• ✅ Install batteries or connect to auxiliary power as per project design.

• ✅ Place Z-Wave controller in inclusion mode.

• ✅ Trigger pairing on the siren (refer to device manual sequence).

• ✅ Confirm inclusion by checking siren status in the controller interface.

• ✅ Perform association tests – link siren to intrusion sensors, motion detectors, or access controllers.

---

5. Functional Testing

• ✅ Trigger test alarm – verify 115dB siren output is sufficient in target area.

• ✅ Strobe test – ensure LED is visible under ambient lighting conditions.

• ✅ Tamper test – remove/loosen casing to confirm tamper alert is sent to controller.

• ✅ Z-Wave range test – walk-test alarms at different site zones to check signal strength.

• ✅ Power redundancy check – confirm backup battery or UPS integration where required.

---

6. Commissioning & Handover

• ✅ Document siren ID, Z-Wave node number, and location for service records.

• ✅ Provide client with user instructions for alarm acknowledgement/reset.

• ✅ Advise recommended maintenance schedule:

  • Quarterly siren function test.

  • Annual battery replacement (or sooner in high-temperature environments).

• ✅ Ensure compliance certificates are signed off if project requires regulatory approval.

---

Best Practice Notes

• 🔹 For industrial steel-frame buildings, position Z-Wave repeaters every 10–15m to avoid RF dead zones.

• 🔹 Avoid mounting directly in direct sun exposure; use shaded or covered spots to reduce heat stress and extend battery lifespan.

• 🔹 Always test alarms outside working hours to avoid disrupting operations.

• 🔹 If integrating with multiple sirens, stagger Z-Wave node inclusion to prevent pairing conflicts.
