Technical Guide to Contractor-Grade Sliding Gate Motors for Residential and Commercial Installations
1. Introduction
In modern perimeter security and access control, the performance of the automation hardware directly affects the long-term reliability and safety of the system. For gate contractors, fencing companies, and access control integrators, selecting the correct sliding gate motor is a critical design decision that impacts installation complexity, service life, compliance, and maintenance requirements.
Technical Guide to Contractor-Grade Sliding Gate Motors examines three commonly used sliding gate automation systems supplied by Digital Home Systems, focusing on their mechanical and electrical characteristics, integration options, and suitability for various gate types and operating conditions. The systems discussed — Nice Robus 400, Nice Robus 600, and DEA LIVI 24V Series — represent contractor-grade solutions widely adopted in residential, commercial, and light-industrial environments.
2. General Considerations in Gate Motor Selection
When specifying an automation system for a sliding gate, the following parameters are typically evaluated:
-
Gate mass and inertia: Determines motor torque, gear ratio, and drive selection.
-
Duty cycle: Defines motor type (AC vs. DC) and thermal management requirements.
-
Operating environment: Informs IP rating, temperature tolerance, and corrosion resistance.
-
Control logic and integration: Impacts system compatibility with safety devices, access controls, and building management systems.
-
Power supply requirements: Affects wiring design, circuit protection, and standby solutions.
The systems discussed below address these parameters with design features optimised for reliability, serviceability, and safety.

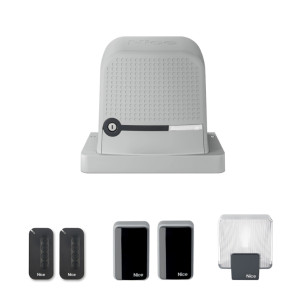

3. Nice Robus 400 – Compact Automation for Light-Duty Sliding Gates
3.1 Mechanical and Electrical Characteristics
The Nice Robus 400 is designed for sliding gates up to 400 kg and is typically specified for residential and low-traffic commercial installations. It employs a 24 V DC motor with an integrated encoder for position feedback, enabling smooth acceleration and deceleration profiles and enhanced obstacle detection.
-
Rated load: ≤ 400 kg
-
Motor supply: 24 V DC
-
Maximum leaf speed: ~0.25 m/s (application-dependent)
-
Gear reduction: Lubricated worm gear system for high mechanical efficiency
-
Operating temperature: –20 °C to +50 °C
-
Noise level: ≤ 55 dB
3.2 Functional Features
-
BlueBUS communication: Reduces cabling complexity and facilitates connection with photocells, flashing lights, and safety edges.
-
Obstacle detection: Encoder-based control enables immediate reversal upon contact, contributing to EN 12453 compliance.
-
Soft start/stop: Minimises mechanical stress, extending gear and rack life.
-
Adaptive torque control: Adjusts motor power based on ambient temperature and load conditions.
3.3 Installation Considerations
The Robus 400’s compact chassis and integrated control logic simplify installation in space-constrained environments. Its 24 V DC architecture also allows optional battery backup integration without additional converters, a useful feature for residential sites where continuity of access is required during power interruptions.

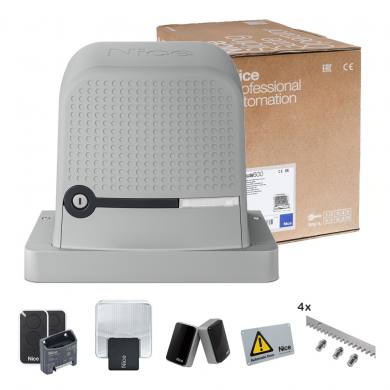

4. Nice Robus 600 – Medium-Duty System for Increased Load Requirements
4.1 Design Overview
The Robus 600 is designed for gates up to 600 kg and is suited to medium-duty residential or light-commercial applications with moderate duty cycles. It incorporates a reinforced gearbox, higher torque motor, and enhanced cooling capacity for continuous operation.
-
Rated load: ≤ 600 kg
-
Motor supply: 24 V DC
-
Control unit: Integrated logic board with parameter adjustment for torque, speed, and soft start/stop timing.
-
Thermal protection: Built-in sensor prevents overheating in high-duty environments.
4.2 Control and Safety Features
-
Obstacle sensing: Encoder-based feedback enables real-time monitoring of motor torque.
-
Adjustable parameters: Opening speed, braking force, and acceleration curves can be tuned during commissioning.
-
External manual release: Facilitates mechanical disengagement during servicing or emergency conditions.
4.3 Application Scope
Due to its higher load rating and robust design, the Robus 600 is typically installed in multi-residential complexes, commercial car parks, or light-industrial perimeter systems. It also supports integration with access control devices and safety interfaces via dry contact inputs or BUS connections.
5. DEA LIVI 24V Series – Precision Control and Advanced Feedback
5.1 System Architecture
The DEA LIVI 24V range utilises a brushless 24 V DC motor with encoder feedback for enhanced positional accuracy and dynamic torque control. Designed for gates up to 400 kg, the system’s emphasis is on precision movement, safety compliance, and system integration.
-
Rated load: ≤ 400 kg
-
Control system: Microprocessor-based logic with adaptive current sensing.
-
Drive type: Gearmotor with self-lubricating worm gear assembly.
-
Ingress protection: IP44 or higher, depending on enclosure.
5.2 Key Functional Characteristics
-
Self-learning logic: Automates gate travel calibration, reducing commissioning time.
-
Obstacle reaction: High-resolution encoder enables immediate motor cut-off and reversal.
-
Low-voltage safety: 24 V DC system reduces risk during installation and maintenance.
-
Integration compatibility: Native support for safety devices, photo-beams, and advanced access controllers.
5.3 Use Cases
DEA LIVI motors are particularly well suited for projects requiring precise control and low-noise operation. Their encoder feedback and configurable motion parameters make them a strong choice in environments with strict safety or compliance requirements.
6. Installation and Integration Considerations – Technical Guide to Contractor-Grade Sliding Gate Motors
When deploying sliding gate automation in the field, several technical factors should be addressed during the design and installation stages:
-
Rack alignment: Ensure correct meshing between motor pinion and gate rack to prevent premature wear and noise.
-
Foundation and mounting: The motor base should be anchored on a stable concrete footing to resist vibration and maintain gear alignment.
-
Electrical isolation: Motors should be installed on a dedicated circuit with surge protection, particularly in regions prone to lightning or voltage fluctuations.
-
Safety compliance: Photocells, safety edges, and flashing lights should be installed in accordance with AS 4024.1 and EN 12453 standards.
-
Maintenance planning: Periodic inspections should include gear lubrication, encoder calibration checks, and torque verification.
7. Comparative Analysis and Selection Guidelines
| Feature | Nice Robus 400 | Nice Robus 600 | DEA LIVI 24V |
|---|---|---|---|
| Max gate weight | 400 kg | 600 kg | 400 kg |
| Motor supply | 24 V DC | 24 V DC | 24 V DC |
| Encoder feedback | Yes | Yes | Yes (high resolution) |
| Duty cycle | Residential | Medium-duty commercial | Residential / light commercial |
| Control interface | BlueBUS | BlueBUS / I/O | I/O, BUS |
| Safety features | Obstacle detection, soft start/stop | Torque control, external release | Adaptive current sensing, encoder stop |
8. Conclusion
For Technical Guide to Contractor-Grade Sliding Gate Motors, selecting the correct sliding gate motor is not simply a matter of load capacity — it involves evaluating control architecture, installation environment, safety requirements, and integration compatibility. The Nice Robus and DEA LIVI ranges offer robust, technically mature solutions designed for demanding installations, from light residential gates to heavier commercial systems.
Each platform delivers precise control, reliable operation, and compliance-ready safety features while minimising installation complexity. By aligning system specifications with project requirements, contractors can deliver high-performance automated gate solutions with long-term reliability and reduced maintenance overhead.
