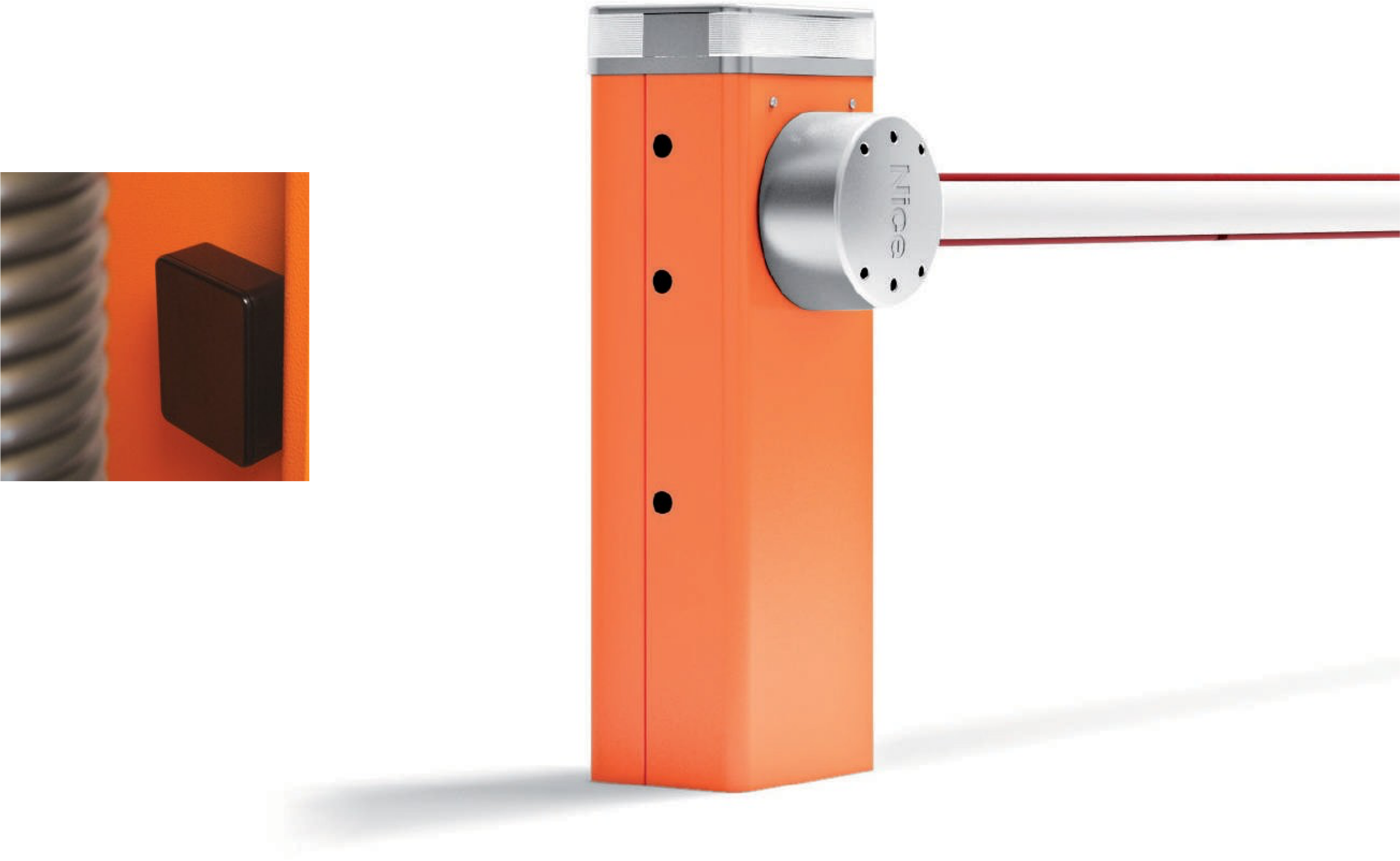

Nice S-Bar Barrier Gate Operator

$2,635.45

Please login to see trade price

Availability: In Stock

Electromechanical road barrier system for control of road access. 24 Vdc gear motor with built-in control unit. FOR BAR UP TO 4m

SKU: NICE-GATES-BOOMGATE-S Categories: , ,

Description

Quick Overview

Strength and reliability: robust structure in steel, new high strength balancing springs guaranteed up to 1000000 opening and closing operations and elliptical section bar with high wind-gust resistance

More comfortable and safety in programming an maintenance phases: the separate enclosures for electronics and mechanics protect internal parts from potential risks

Rapid and easy access: to the control unit located in the upper section of the barrier body. Simple fixture of the completely concealed photocells onto the specially designed seats on the barrier body. Simple fixture of the completely concealed photocells onto the specially designed seats on the barrier body.

More safety and reliability: obstacle detection and monitoring of motor absorption during automation movement, automatic fault diagnostics during operation with consequent signalling of fault type through specific flash sequences. Provision for connection of latest generation optical and resistive sensitive edges.

Energy saving: the system sets to standby by when not in use to save consumption

Technical Specifications:

Model S-Bar
Electrical Data
Power supply (V AC 5Hz) 230
Power supply (Vdc) 24
Absorption (A) 1
Power (W) 300
Performance Data
Speed (m/s) <4
Torque (N) 100
Work cycle (cycles/day) 100
Dimensional and general data
Protection Level (IP) 44
Working. Temp (°C Min/Max) -20 / +50
Dimensions (mm) 330X180X1180
Weight (kg) 46



Product Support

Additional information

Weight 7.0000 kg
Dimensions 97.0000 × 12.0000 × 11.0000 cm
