Description
Quick Overview
The Fibaro Roller Shutter Controller is designed to control blind, awning, garage door and gate motors.
- Supports five different types of motor systems
- Precise positioning of blind or awning
- Automatic calibration
- Wireless control of AC motors with “three wires” interface
- Monitor and analyse energy usage

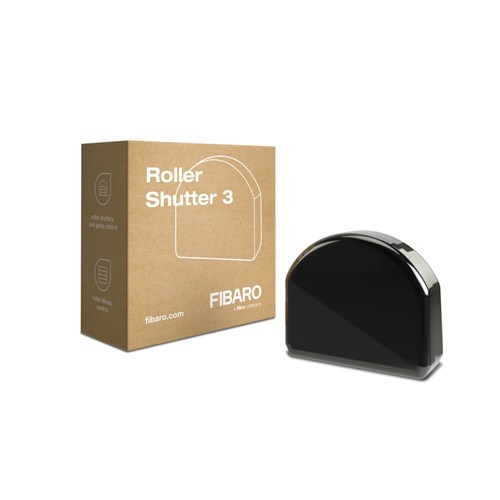

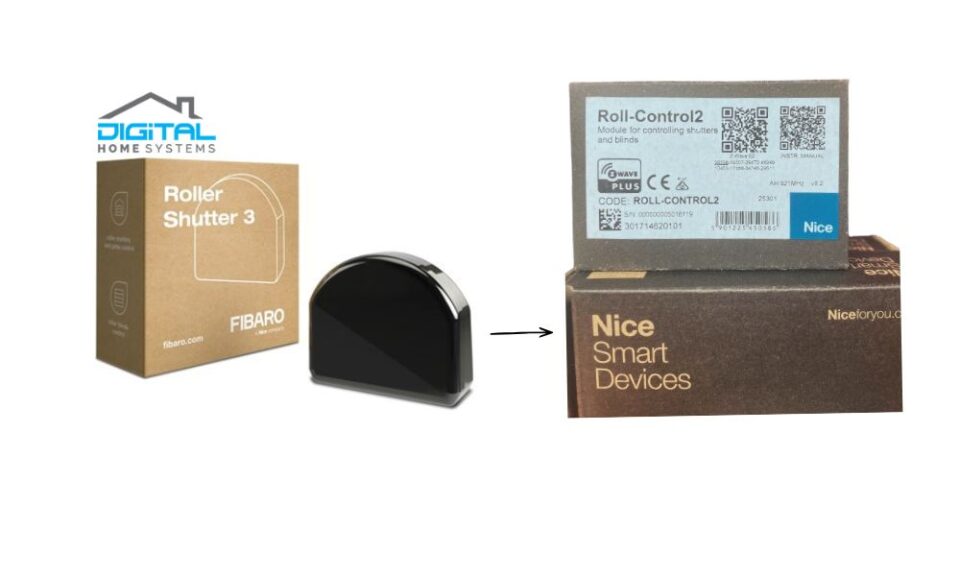

FIBARO Roller Shutter 3 (FGR-223) is a new Z-Wave Plus version of its predecessor model Fibaro Roller Shutter 2.
Product Details
The Fibaro Roller Shutter 3 (FGR-223) is an advanced Z-Wave controller for automated roller blinds, awnings, venetian blinds, garage doors and gates. The module can control devices that are powered by an AC electric motor with “tree wires” interface.
The Roller Shutter module features automatic calibration, so that you can precisely position the blind. It also includes a power metering feature to help you measure the power consumption.
The Fibaro Roller Shutter 2 has five modes that enable it to perfectly control any electric garage door, gate, roller blind, awning or venetian blind. This allows for correct configuration and operation of a device through a special interface icon (via the Fibaro HC2).
- Roller blinds with positioning
- Roller blinds without positioning
- Garage doors with positioning
- Garage doors without positioning
- Venetian blind
Configuring Z-Wave Devices:
Z-Wave devices often have several configurable parameters which you can change using your Vera’s user interface. These parameters can include things such as the length of time a Z-Wave siren remains active for or the type of manual switch connected to a Z-Wave light controller.
Every available configurable parameter is listed in your device’s user manual. In most cases your device’s default parameters will be suitable to your needs however sometimes it may be necessary to adjust them to optimally use your device. A guide to configuring Z-Wave devices with Vera UI7 is available in the Manuals section.
This product must be installed by qualified electrician.
Before engaging an electrician, check that they provide a warranty and electrical compliance certificate.
For warranty claim you have to provide an installation compliance certificate from your electrician.
Product Support
Manuals:
⇒ Fibaro Z-Wave Roller Shutter 3
⇒ Guide to Configuring Z-Wave Devices with Vera UI7 (Size: 435 kB)
⇒ Fibaro System Overview (Size: 14.5 MB)
Videos / YouTube:
⇒ Fibaro Fibaro Home Center 2 Presentation
Technical Specifications
|
RF Protocol
|
Z‐Wave Plus
|
|
RF Frequency
|
921.42Mhz ‐ AU/NZ approved RF for Z‐wave
|
|
Z‐wave device type
|
Z-Wave multiple level dimmer, routing slave
|
|
Power
|
110 – 230 V ±10% 50/60Hz
|
|
Operation Range
|
Up to 20m indoor when no obstacles
|
|
Application
|
Indoor use only
|
|
Operation temperature
|
0 ~ 55 °C
|
| Motor Load max | up to 1kW |
|
Storage temperature
|
‐10 ~ 80 °C
|
|
Weight
|
50g
|
|
Housing
|
ABS
|
|
Compliance
|
C-Tick, EU standards EN 55022, EN 61000
|
