Description

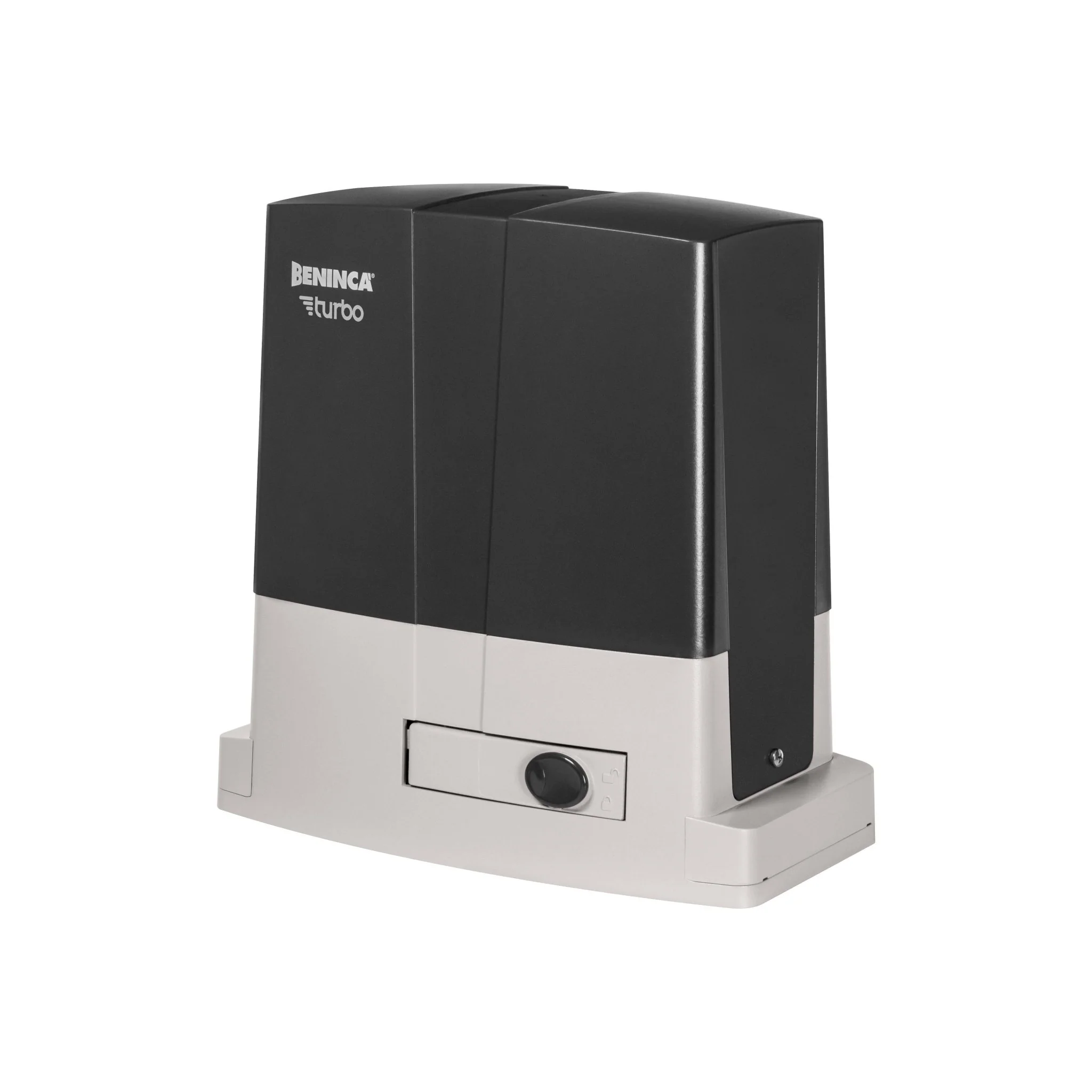

Beninca BULL 624 Turbo Sliding Gate Motor Kit – High-Speed Automation for Sliding Gates up to 600kg

The Beninca BULL 624 Turbo sliding gate motor kit is a high-performance automation solution designed for residential and light commercial sliding gates requiring fast and reliable operation. Engineered in Italy and designed for professional installers, the BULL 624 Turbo delivers powerful torque, smooth gate movement and long-term reliability.

Built on advanced 24V DC motor technology, the Beninca BULL 624 Turbo allows precise control of gate movement while maintaining safe operation. The system is designed to automate sliding gates weighing up to 600kg, making it suitable for residential driveway gates, apartment complexes and commercial access points.

Compared with standard sliding gate motors, the Turbo provides significantly faster gate opening speeds while maintaining smooth acceleration and deceleration. This performance advantage makes the motor particularly suitable for properties where frequent vehicle access requires fast and efficient gate automation.

For installers and property owners seeking a reliable sliding gate motor with strong performance and modern safety features, the Turbo offers a practical and professional solution.

---

Key Features of the Beninca BULL 624 Turbo

The BULL 624 Turbo includes several advanced features designed to improve performance, safety and installation efficiency.

High-Speed 24V DC Motor System

The BULL 624 Turbo operates using a high-performance 24V DC geared motor capable of delivering fast and controlled gate movement. The system can reach opening speeds of up to 25.5 metres per minute, making the Turbo one of the faster sliding gate motors in its category.

This high-speed capability allows vehicles to enter or exit the property more quickly, improving convenience for both residential and commercial installations.

---

Integrated Control Unit with Switching Power Supply

The BULL 624 Turbo includes an integrated control unit equipped with a switching power supply compatible with 115V and 240V AC input. This design improves energy efficiency and helps maintain stable motor performance.

The control unit is positioned at the top of the motor housing, allowing easier access for wiring and configuration during installation.

---

Virtual Encoder Technology

A key advantage of the BULL 624 Turbo is the built-in virtual encoder system, which continuously monitors the speed and movement of the gate.

This technology allows the motor to:

• detect obstacles through torque monitoring

• manage slowing-down phases during gate movement

• improve positioning accuracy during opening and closing cycles

These intelligent control features help the BULL 624 Turbo operate smoothly while maintaining safe automation performance.

---

Advanced Safety Features

Safety is a critical requirement for modern gate automation systems. The BULL 624 Turbo includes several integrated safety mechanisms designed to protect both the gate system and users.

These include:

• anti-crushing protection with amperometric obstacle detection

• controlled torque management during operation

• safety sensor that disables the motor during manual release

These safety functions ensure the Beninca BULL 624 Turbo meets modern gate automation standards.

---

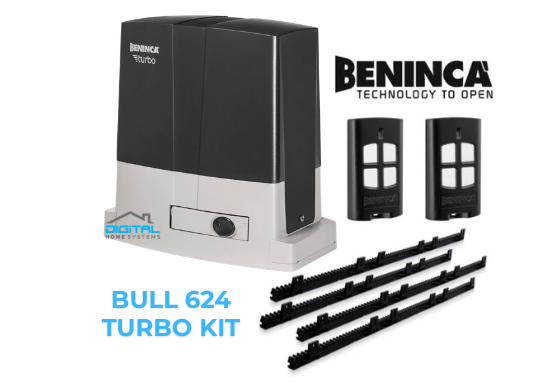

What’s Included in the BULL 624 Turbo Kit

The Beninca BULL 624 Turbo kit includes the essential components required for a sliding gate automation installation.

The kit includes:

• 1 × Beninca BULL 624 Turbo sliding gate motor

• 6 metres steel gear rack

• 2 × remote transmitters

The inclusion of 6 metres of rack allows installers to automate wider sliding gates without needing to purchase additional rack components.

You can explore more sliding gate automation products in our category

---

Technical Specifications

Below are the key specifications of the BULL 624 Turbo sliding gate motor.

Specification	Value
Motor supply	24 VDC
Power supply	115 / 240 VAC
Maximum gate weight	600 kg
Maximum thrust	330 N
Opening speed	up to 25.5 m/min
Duty cycle	60%
Protection rating	IP44
Operating temperature	−20°C to +50°C
Motor weight	approx. 10 kg

These specifications make the BULL 624 Turbo suitable for residential sliding gates and light commercial automation systems.

---

Applications of the Beninca BULL 624 Turbo

The BULL 624 Turbo is suitable for a wide range of gate automation installations across Australia.

Residential Driveway Gates

Homeowners often choose the Beninca BULL 624 Turbo for driveway gate automation because it provides fast opening speeds and reliable daily operation.

Apartment and Strata Entrances

Apartment complexes and gated communities require automation systems capable of handling frequent daily access. The BULL 624 Turbo is designed for intensive use and consistent performance.

Commercial Gate Automation

Commercial sites such as warehouses, workshops and business premises can also benefit from the  BULL 624 Turbo, which provides reliable vehicle access control and efficient gate operation.

---

Beninca BULL 624 Turbo vs BULL 624SE – Key Differences

Installers often compare the BULL 624 Turbo with the BULL 624SE kit, as both motors support sliding gates up to around 600kg.

However, several differences make the turbo version more suitable for certain installations.

Gate Opening Speed

The Beninca BULL 624 Turbo offers significantly faster gate operation compared with the BULL624SE motor. This makes the turbo version ideal for installations requiring quick access.

Rack Included in the Kit

The Beninca BULL 624 Turbo kit includes 6 metres of rack, while the BULL624SE kit typically includes 4 metres.

This means the turbo kit is better suited for wider gates.

Installation Environment

The Beninca BULL 624 Turbo is commonly used in installations requiring faster operation or heavier daily usage, while the BULL624SE is typically installed on standard residential driveway gates.

You can view the BULL624SE motor

---

Smart Home Integration

The BULL 624 Turbo can integrate with building automation systems through the X.BE interface module, allowing connection with KNX smart home systems.

This capability allows installers to connect the BULL 624 Turbo with smart home platforms, access control systems and building automation networks.

---

Why Choose Beninca Gate Automation

Beninca is a globally recognised manufacturer of gate automation equipment known for producing reliable automation systems used worldwide.

The Beninca BULL 624 Turbo reflects the company’s commitment to high-quality engineering, reliable performance and installer-friendly design.

For more information about Beninca automation products, visit the official manufacturer website:

---

Installation Recommendation

To ensure safe and reliable operation, the Beninca BULL 624 Turbo should be installed by an experienced gate automation installer.

INSTRUCTION MANUAL

Professional installation typically includes:

• installing the motor base plate

• mounting the rack along the gate

• configuring opening and closing limits

• connecting safety accessories

If you are a property owner purchasing the Beninca BULL 624 Turbo, engaging a qualified installer ensures the system is installed correctly and operates safely.

---

Frequently Asked Questions

What gate weight can the Beninca BULL 624 Turbo handle?

The BULL 624 Turbo is designed for sliding gates weighing up to approximately 600kg.

Does the kit include rack and remote controls?

Yes. The BULL 624 Turbo kit includes 6 metres of rack and two remote transmitters.

Is the motor suitable for Australian residential gates?

Yes. The BULL 624 Turbo is widely used in Australia for residential driveway gates and small commercial entrances.

Can the motor integrate with smart home systems?

Yes. The BULL 624 Turbo can integrate with KNX smart home systems through the Beninca X.BE interface module.
