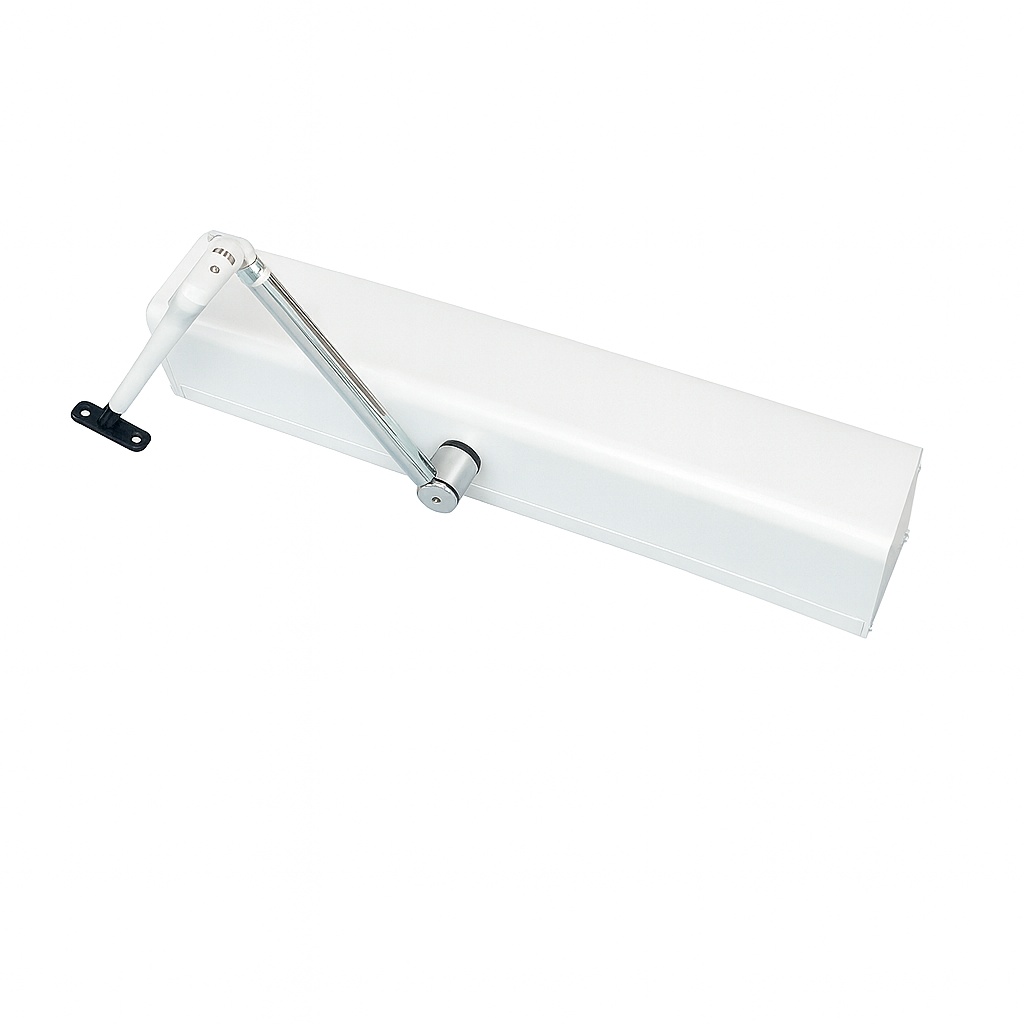

Automatic Swing Door Opener 250kg

Description

Automatic Swing Door Opener 250kg – Smart, Safe, and Powerful Access Control Solution

Product Overview

The Automatic Swing Door Opener 250kg is a next-generation, intelligent door automation system designed for heavy-duty applications and precision control. Built for both inward and outward swing doors, this model (KTH SW-2) delivers advanced technology, superior safety, and smooth motion for commercial, industrial, and residential environments.

With a robust DC24V 120W brushless DC motor and a micro-controller certified under EN16005 standards, the Automatic Swing Door Opener 250kg ensures reliable performance even under high-traffic conditions. From hospitals and offices to smart homes and retail spaces, this system brings convenience, efficiency, and elegance to every doorway.

---

Key Features of the Automatic Swing Door Opener 250kg

1. High Load Capacity and Performance

• Supports doors up to 250kg at 1 meter width or 150kg at 1.5 meters width.

• Designed for heavy and wide doors with continuous smooth operation.

• Engineered to provide durability and consistent torque output, even under daily intensive use.

2. Intelligent Micro-Controller Technology

• Integrated EN16005-certified micro-controller for precise operation management.

• Offers customized memory modes to easily program door opening distance and speed.

• Built-in soft start and soft stop features reduce mechanical wear and ensure quiet motion.

3. Dual Locking Options for Enhanced Security

• Supports Fail-Safe (unlocked during power outage) and Fail-Secure (locked during outage) configurations.

• Compatible with electric locks, making it suitable for restricted or high-security areas.

• The Automatic Swing Door Opener 250kg integrates seamlessly with access control systems and sensors.

4. Flexible Arm Configurations

• Available in Outward Arm Assembly and Inward Arm Assembly types.

• Adjustable arms ensure perfect motion control for different door orientations.

• Easy installation across various building layouts, whether retrofitted or new.

5. Ultra-Quiet and Energy Efficient

• Operates below 66 decibels, ideal for hospitals, offices, and residential spaces.

• Low energy consumption at 120W with over 90% power efficiency.

• The brushless DC motor ensures longer life, less maintenance, and smoother operation.

Technical Specifications

Specification	Details
Model Name	KTH SW-2
Type	Automatic Swing Door Opener 250kg
Motor	DC24V 120W Brushless DC Motor
Control System	Micro-Controller (EN16005 Certified)
Power Consumption	120W
Operating Voltage	AC100V–240V
Working Temperature	-20°C to +50°C
Noise Level	≤ 66 dB
Speed of Opening/Closing	3–8 sec (Adjustable)
Starting Delay Time	0–20 sec (Adjustable)
Opening Angle	110° (max adjustable), 90° (default)
Power Efficiency	≥90% (AC100V full load)
Weight	12.5 kg
Door Load Capacity	250kg (max)
Lock Type Compatibility	Fail-Safe / Fail-Secure
Mounting Options	Outward / Inward Arm Assemblies

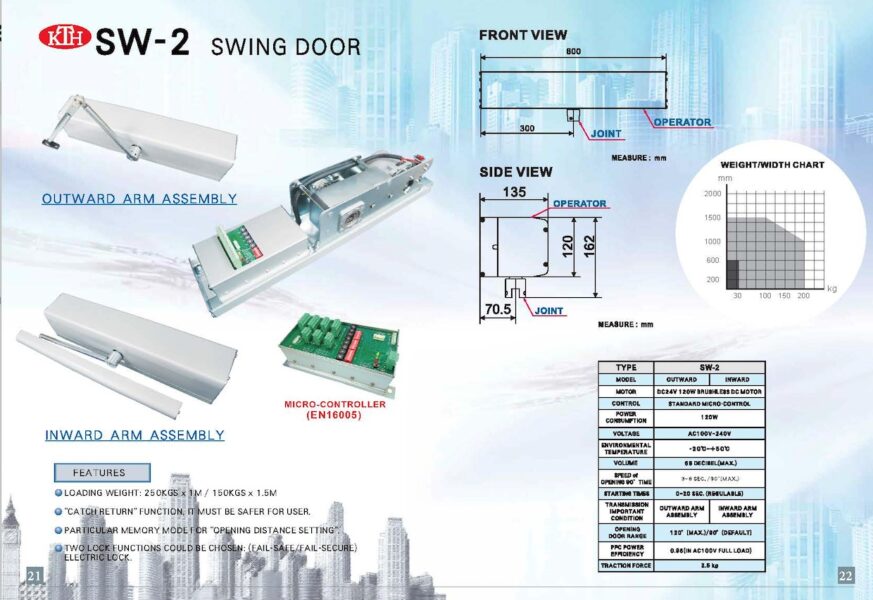

Automatic Swing Door Opener 250kg-Manual

Dimensions (in mm)

• Front View: Width 800 mm, Joint Section 300 mm

• Side View: Height 162 mm, Depth 135 mm, Joint Length 70.5 mm

This compact form factor allows the Automatic Swing Door Opener 250kg to be installed in tight spaces while maintaining high operational strength.

---

Smart Performance and Safety

The Automatic Swing Door Opener 250kg combines safety, performance, and intelligence in one sleek design.

• “Catch Return” safety function: Prevents sudden door movement, ensuring user protection.

• Obstacle detection: Automatically stops or reverses if resistance is detected.

• Manual override: Allows manual operation in case of power failure or emergency.

• EN16005 compliance: Meets international standards for automated pedestrian doors.

These features make it an ideal choice for ADA-compliant buildings, ensuring accessibility for all users.

---

Energy Efficiency and Reliability

With a brushless DC motor and micro-controlled power management, the Automatic Swing Door Opener 250kg delivers exceptional energy efficiency. It consumes less power while maintaining high torque, making it perfect for sustainable building designs.

The modular design ensures easy maintenance and long service life — reducing total cost of ownership over time.

---

Applications of the Automatic Swing Door Opener 250kg

This system suits a wide range of environments, including:

Commercial Buildings

• Ideal for main entrances, meeting rooms, and conference facilities.

• Ensures smooth, contactless access in high-traffic zones.

Healthcare Facilities

• Perfect for hospitals, clinics, and laboratories.

• Hands-free operation minimizes contamination risk and supports hygiene standards.

Office Buildings

• Enhances accessibility, security, and energy efficiency.

• Integrates easily with card readers or sensor-based entry systems.

Residential and Smart Homes

• Adds modern convenience and luxury to home entrances.

• Works seamlessly with smart control systems.

Retail and Hospitality

• Improves customer experience with easy access.

• Supports glass and aluminum doors for aesthetic installations.

---

Installation Options

Outward Arm Assembly

• Door opens outward from the operator side.

• Best suited for external doors, emergency exits, and wide corridors.

• Provides strong push operation and stable motion control.

Inward Arm Assembly

• Door opens inward toward the operator.

• Compact and sleek, ideal for interior doors and partitioned spaces.

• Ensures smooth and silent performance.

Each arm assembly includes all hardware and pre-calibrated control boards for fast, hassle-free setup.

---

Advantages of the Automatic Swing Door Opener 250kg

✅ Handles heavy doors up to 250kg effortlessly.
✅ Integrates smart micro-controller with adaptive motion control.
✅ Offers Fail-Safe and Fail-Secure lock compatibility.
✅ Operates quietly and efficiently for long-term reliability.
✅ Provides flexible installation for both inward and outward doors.
✅ Designed with EN16005 safety certification.
✅ Reduces maintenance with a brushless motor system.

---

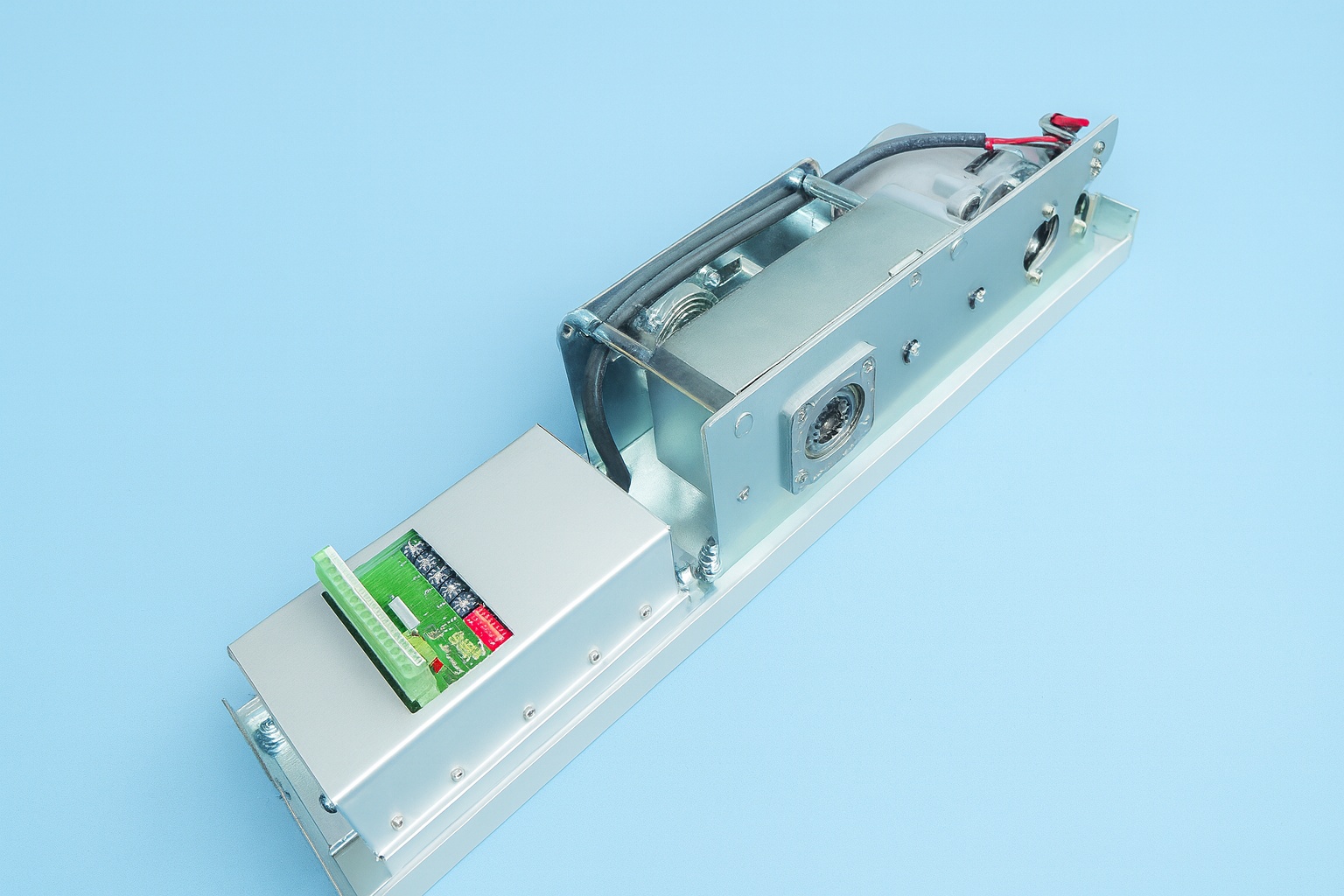

Product Diagram and Components

• Operator Housing: Durable aluminum casing for corrosion resistance.

• Arm Assembly: Precision-linked arms ensuring smooth motion.

• Micro-Controller Unit: EN16005-compliant electronic board for control logic.

• Power Supply Module: AC 100–240V input with DC24V conversion.

These components work together to ensure that the Automatic Swing Door Opener 250kg performs reliably across all environments and door configurations.

---

Why Choose the Automatic Swing Door Opener 250kg (Model SW-2)?

The Automatic Swing Door Opener 250kg is not just an access device—it’s a comprehensive automation solution. Its smart technology, industrial-grade motor, and flexible design make it the best choice for architects, builders, and facility managers seeking a long-lasting, safe, and efficient automatic swing door system.

Choose the SW-2 model for:

• Effortless accessibility and ADA compliance.

• Superior energy performance.

• Reliable control under all environmental conditions.

When performance, safety, and style matter, the Automatic Swing Door Opener 250kg delivers every time.

---

Order and Warranty Information

• Model: KTH SW-2

• Product Name: Automatic Swing Door Opener 250kg

• Package Includes: Arm assembly, control unit, power supply, and installation guide.

• Warranty: 2 years (extendable service plans available).

• Weight: 12.5kg

---

Conclusion

Upgrade your access control with the Automatic Swing Door Opener 250kg, a perfect blend of intelligence, performance, and safety. With robust construction, advanced micro-control, and universal installation options, it redefines convenience in modern architectural automation.

Whether for commercial buildings, healthcare facilities, or smart homes, the Automatic Swing Door Opener 250kg ensures reliable performance, energy savings, and user-friendly operation — making it the ultimate choice for modern door automation.
